VESSELS

Ocean Dynamics’ Vessel “Crown Royal“

The primary survey vessel for Ocean Dynamics operations, the Crown Royal is an excellent platform for coastal ROV and oceanic survey work.

General Specifications

Aluminum Bowpicker Style
Length: 10.36m ( 34′ )
Beam: 3.81m ( 12.5′ )

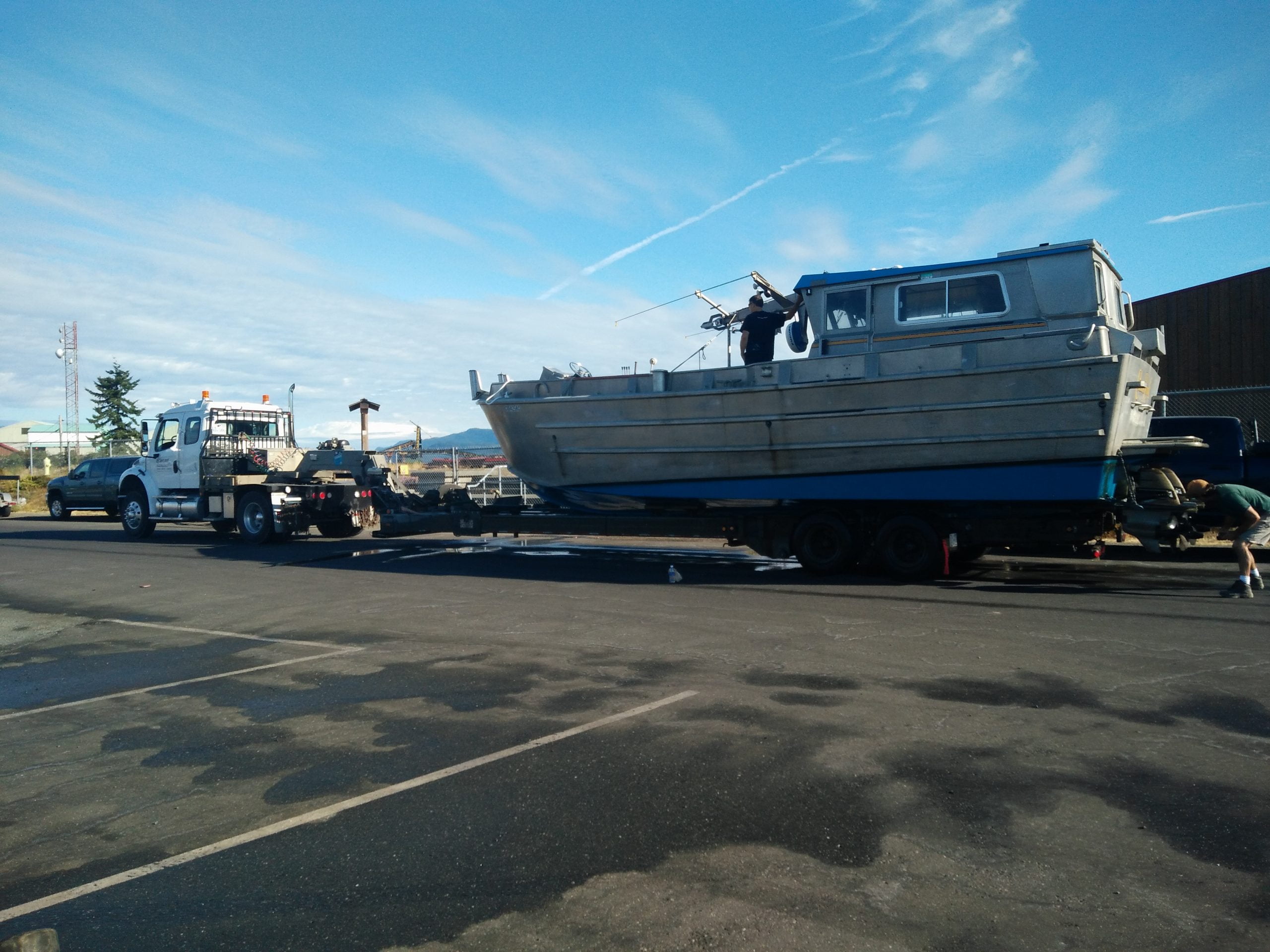

Trailerable: Wide Load & Pilot Car

Propulsion

Twin Volvo Penta Diesel 4cyl. 225hp Engines with Aquamatic Duo Prop Drives
Cruise Speed Light: 20 – 23 knots
Cruise Speed Displacement Mode: 8 – 10 knots

Features

Wheelhouse aft with inside steering station, communications, navigation equipment and table
Safety Equipment including 6 man life raft
Cockpit forward – Flush Decks wheelhouse to the bow
Cockpit portside steering station
Cockpit portside hydraulic control console

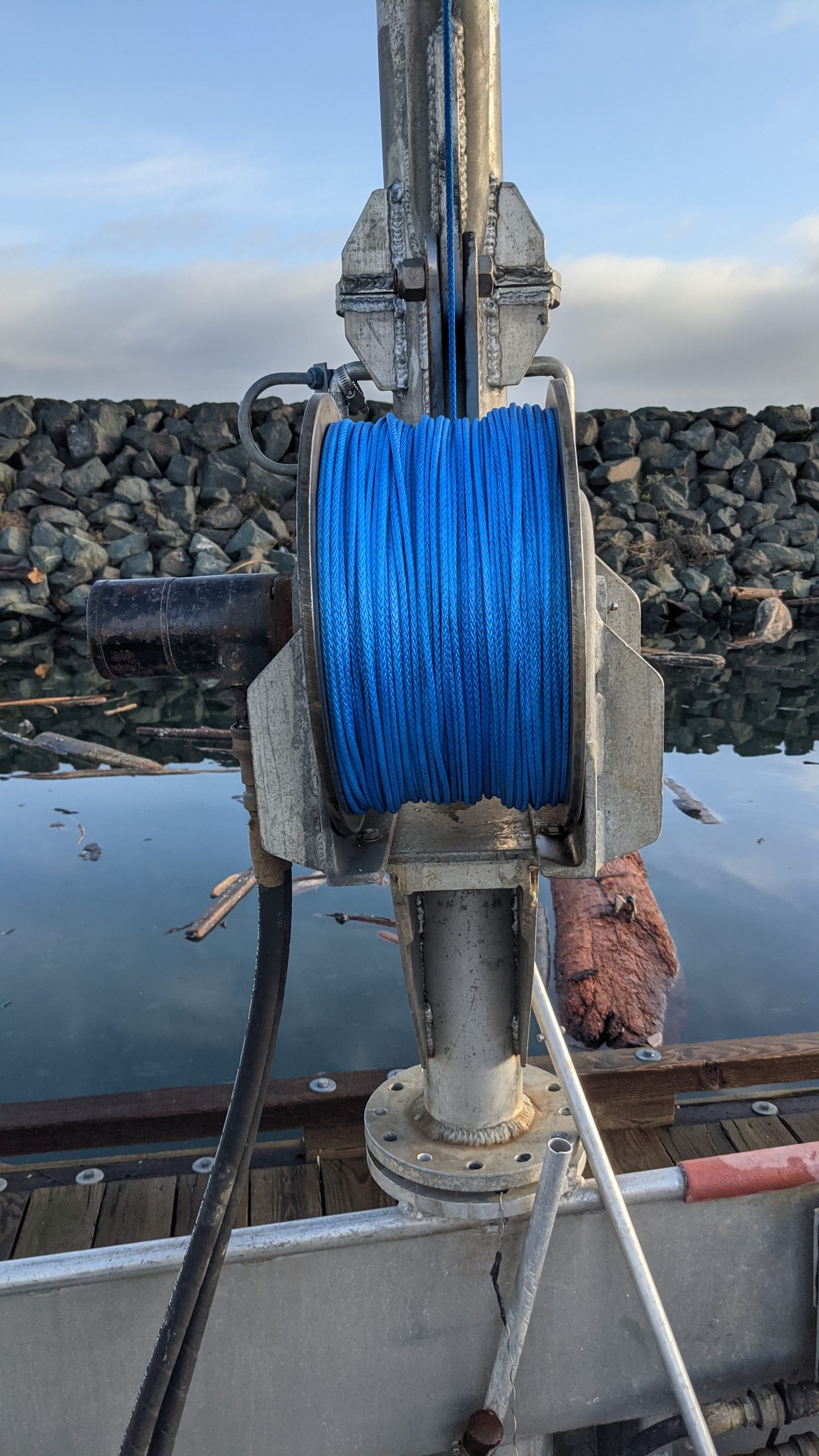

Drum, Hydraulic Aluminum 1.22m ( 4.0′ ) diameter on slides wt. approx 0.68tonnes (0.75tons ) (Optional and removable)
Davit, Hydraulic Aluminum with 500m amsteel line mounted portside
Capstan Hydraulic Aluminum 8″‘ diameter mounted forward
6 large holds for equipment storage.
Hydraulic Emergency Water Pump
Saltwater Washdown Pump. Deck hose with inline water filter if requested.
Over the side navigation pole for USBL transducer, ADCP, or other sensor.

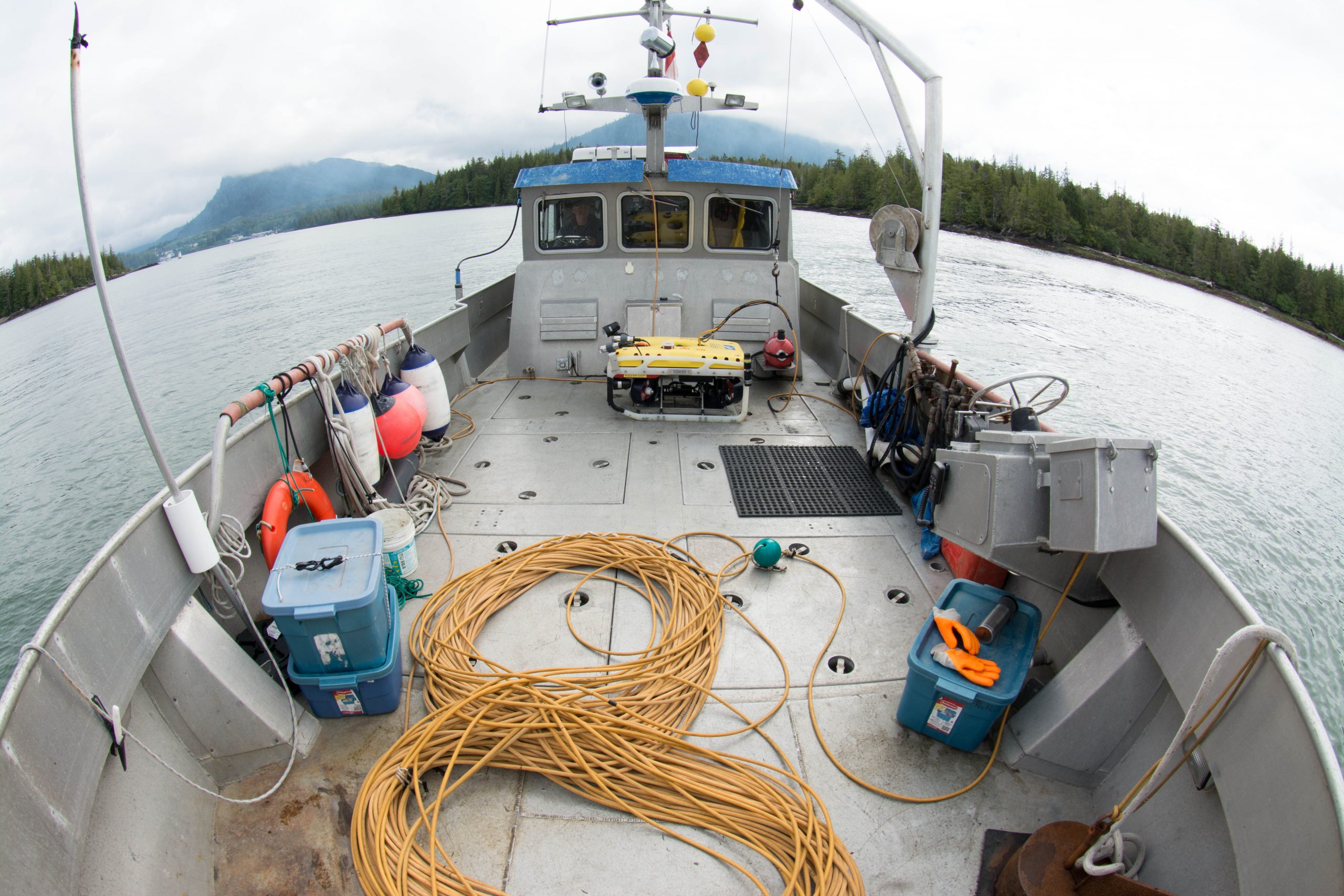

Large Deck Space for Operations and ocean sensor deployment and recovery.

Vessels of Opportunity

Ocean Dynamics works with many other vessels in different capacities. Personnel regularly contract as ROV operators, project managers, consultants, and department heads on several vessels, including the following.
